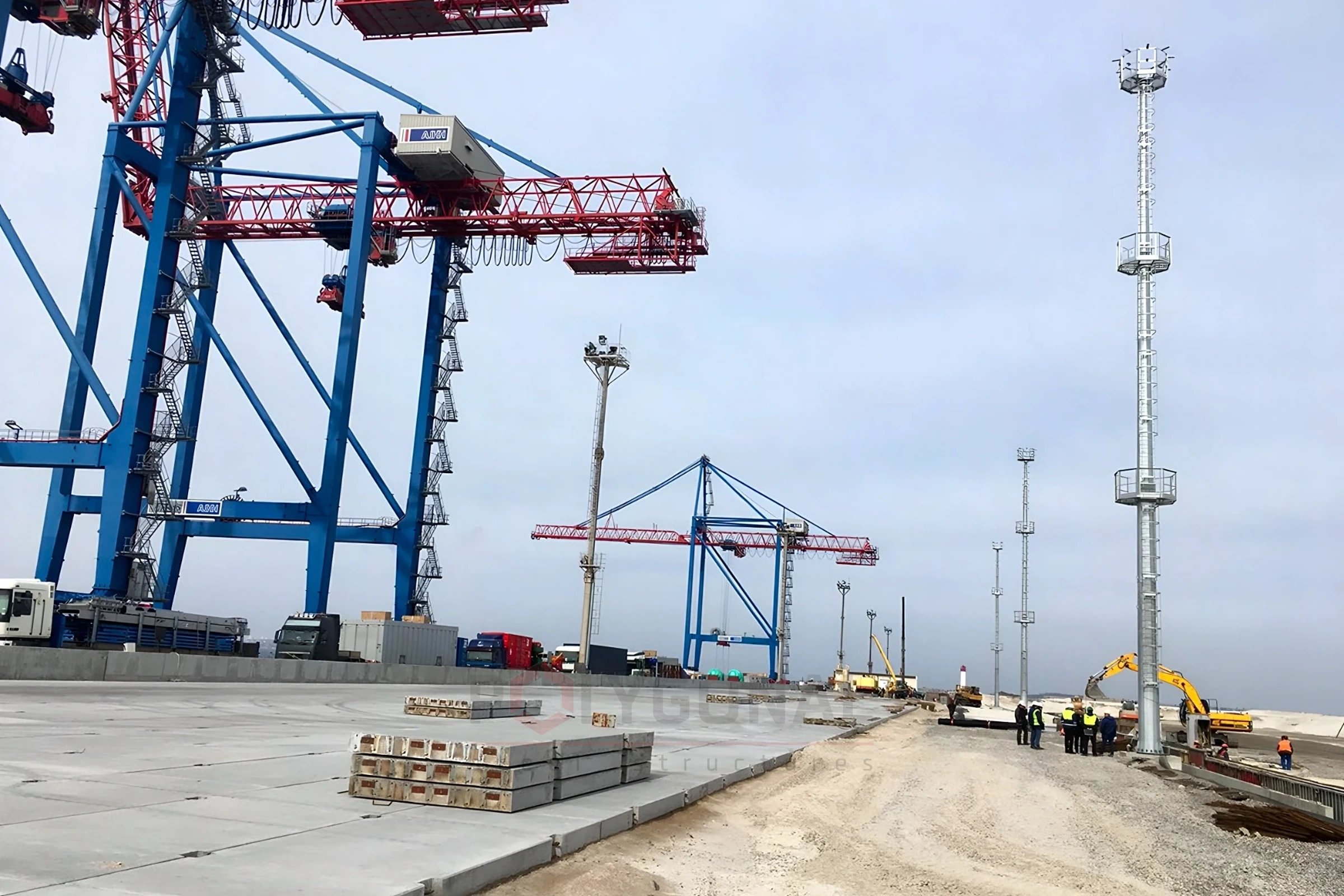

High-mast Lighting for ports, airports and industrial sites
Floodlight masts for lighting ports and industrial sites, airports, substations, railway stations and filling stations. Hot-dip galvanised and engineered for your site.
Mast applications and related products
We design each mast for the height, the number of floodlights and the conditions of your site.
Industrial masts
Lighting of ports, terminals, industrial sites, stations and filling stations around the clock and in any weather.
Stadiums and sports grounds
Football pitches, tennis courts and other grounds: layouts, mast heights and a free calculation are on a separate page, “Stadium Lighting”.
Airport masts
Floodlight masts with red-and-white signal painting of the sections.
Substations: standard PMS and PMZH masts
Standard PMS masts to series 3.407.9-172, the steel fittings of the PMZH (on request, adapted to hot-dip galvanising) and multi-sided equivalents.
Brackets, caps and crossarms
OG caps and TR crossarms for floodlights (1 to 8 per pole), KO and KP brackets for luminaires: marks, galvanising.
Advantages of floodlight masts
Maintenance without special equipment
No special equipment is needed to maintain the lighting fixtures.
Safe servicing
Safe access to the fixtures on the mast. The lower part of the ladder has a lockable hatch.
Platforms for equipment
A wide choice of platforms (cassettes) for floodlights, with room for additional equipment.
Simple installation

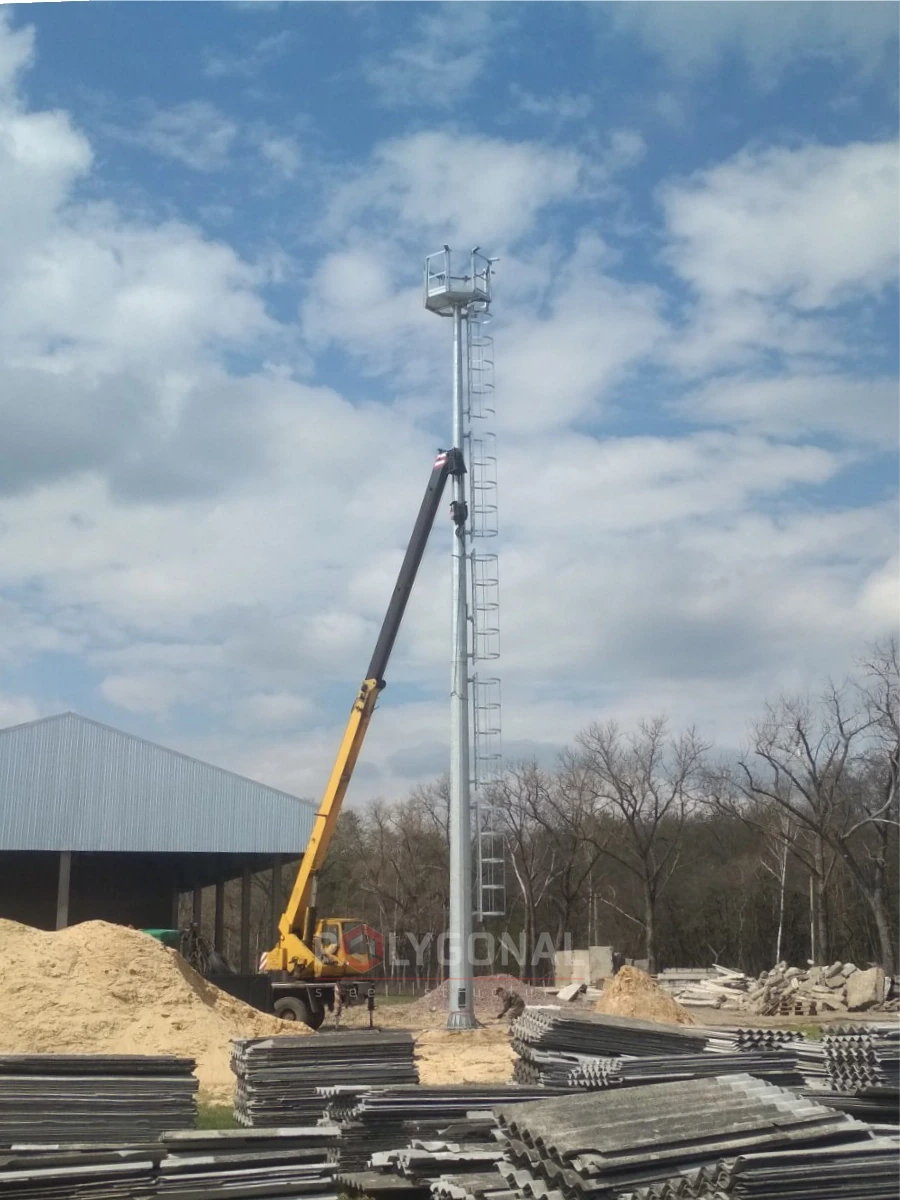

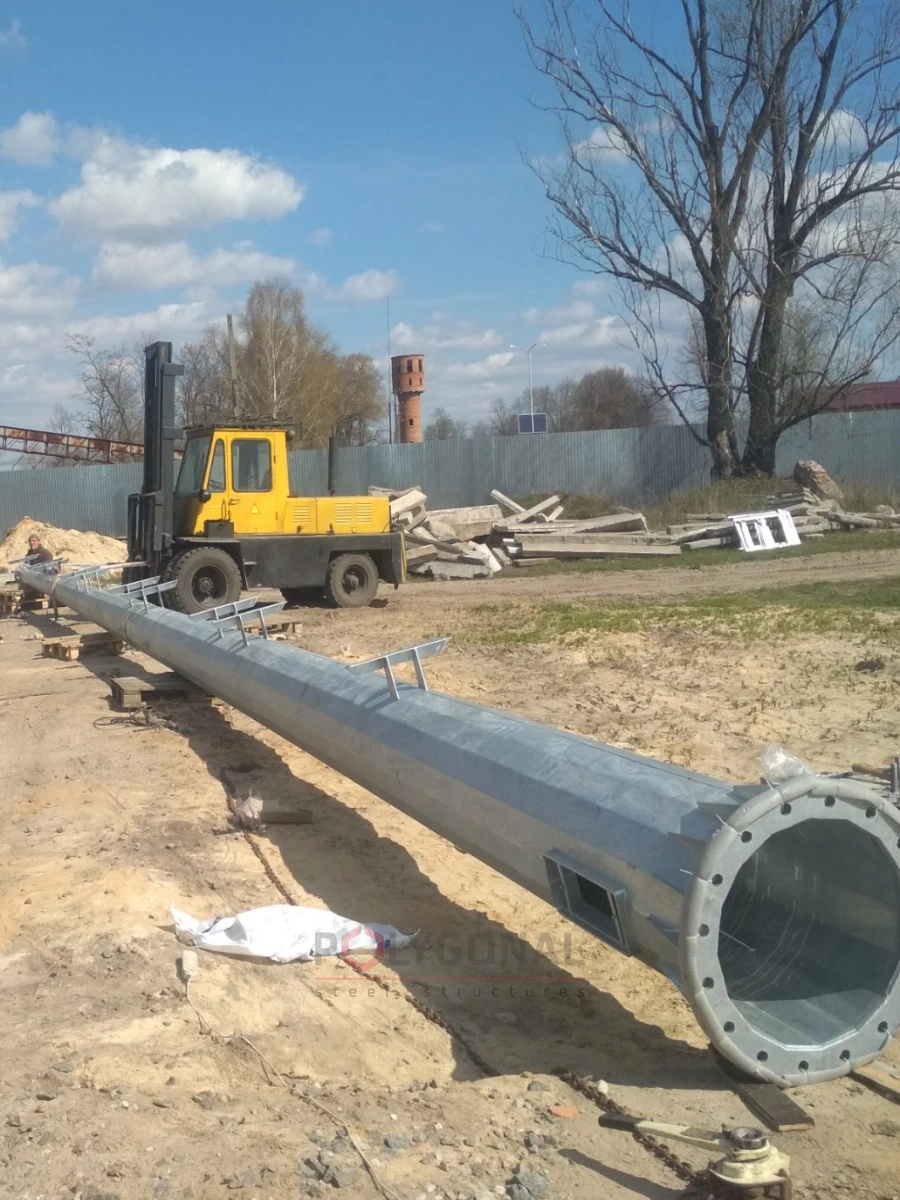

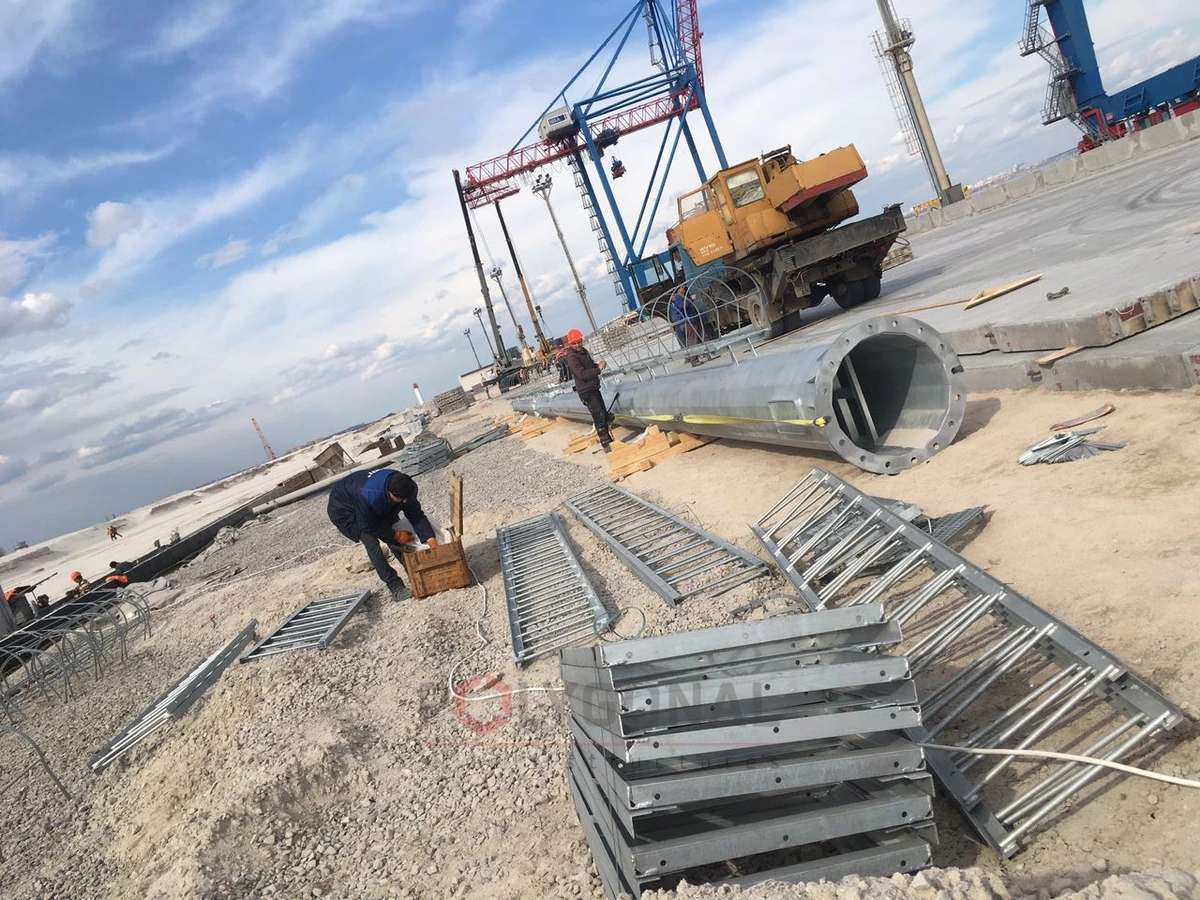

The mast is assembled from sections up to 12 m long and lifted by crane so that its base flange sits on the foundation anchor bolts.
Convenient access
Convenient access to and adjustment of the fixtures. The service hatch is closed with a security bolt.
Corrosion protection
Corrosion protection by hot-dip galvanising to DSTU EN ISO 1461:2024.
Design service life — 40 years
DBN V.1.2-2:2006: wind regions 1–4, terrain types II–IV
Technical specifications
Key parameters of the steel multi-sided floodlight masts in our unified PMV range. Parameters for your site are confirmed by calculation.
| Parameter | Value |
|---|---|
| Standard sizes (mast height) | PMV-20, PMV-24, PMV-30, PMV-34 (20, 24, 30 and 34 m) |
| Marking example | PMV-20-4.II-3.2: 20 m high, wind region 4, terrain type II, maximum equipment windage area 3.2 m² |
| Maximum windage area of the equipment | 3.2 m² (the last number in the designation) |
| Number of floodlights | up to 16 pcs around the service platform (the calculation assumes a floodlight of up to 0.2 m² and 20 kg) |
| Wind pressure region | 1–4 (DBN V.1.2-2:2006) |
| Terrain type | II–IV (DBN V.1.2-2:2006) |
| Operating temperature | −40 °C to +40 °C |
| Seismic zone | up to 6 points |
| Materials | shafts — steel S245; flanges — S345 (category 5); anchor bolts — steel 09G2S or 45 |
| Corrosion protection | hot-dip galvanising to DSTU EN ISO 1461:2024, coating thickness 80–120 µm |
| Design service life | 40 years |
| Foundation anchor cage (for PMV-20) | FPMV-810-1200: 16 anchors M36, bolt circle Ø810 mm, anchor length 1200 mm |
| Technical specification | TU U 25.1-39573934-001:2016 |
Data from the unified design solution TP-PMV.21.01 (2021) developed by the POLYGONAL company.

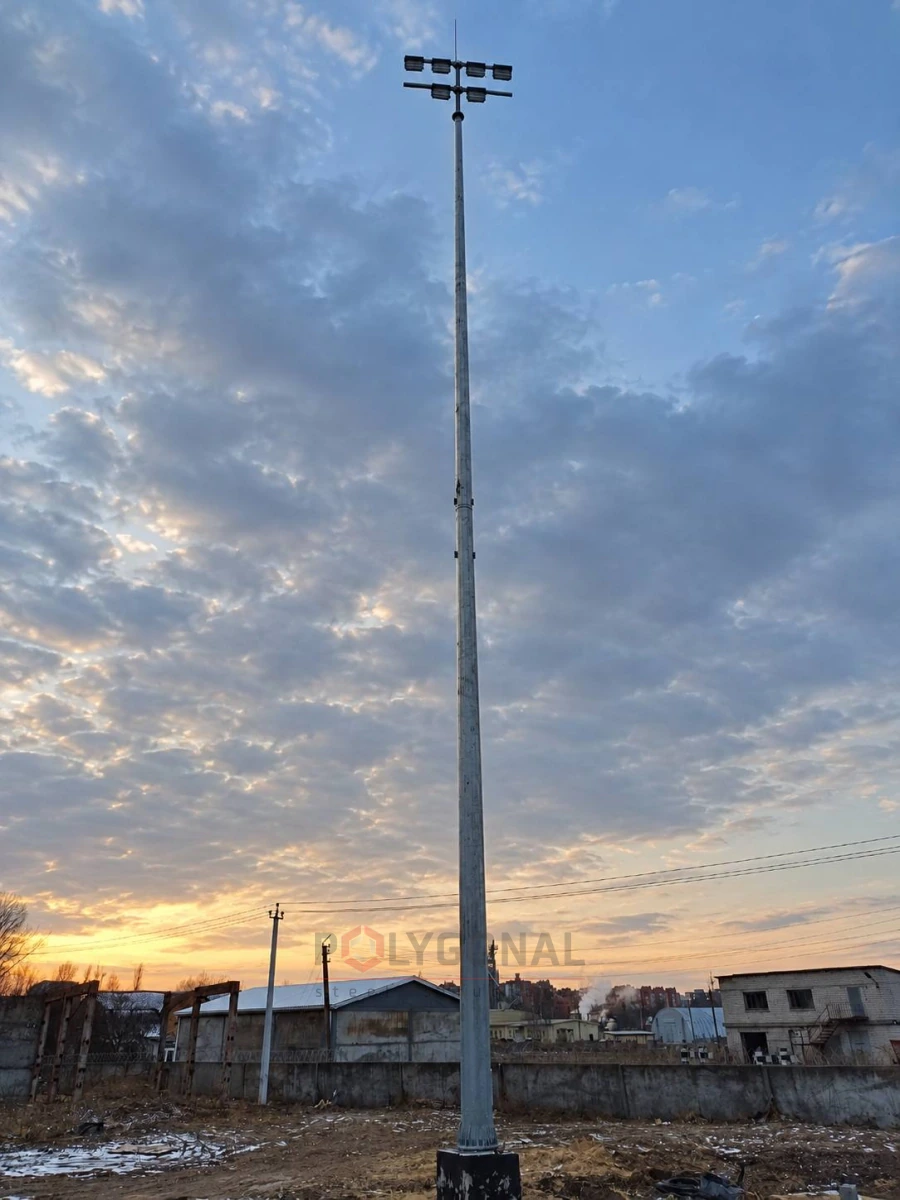

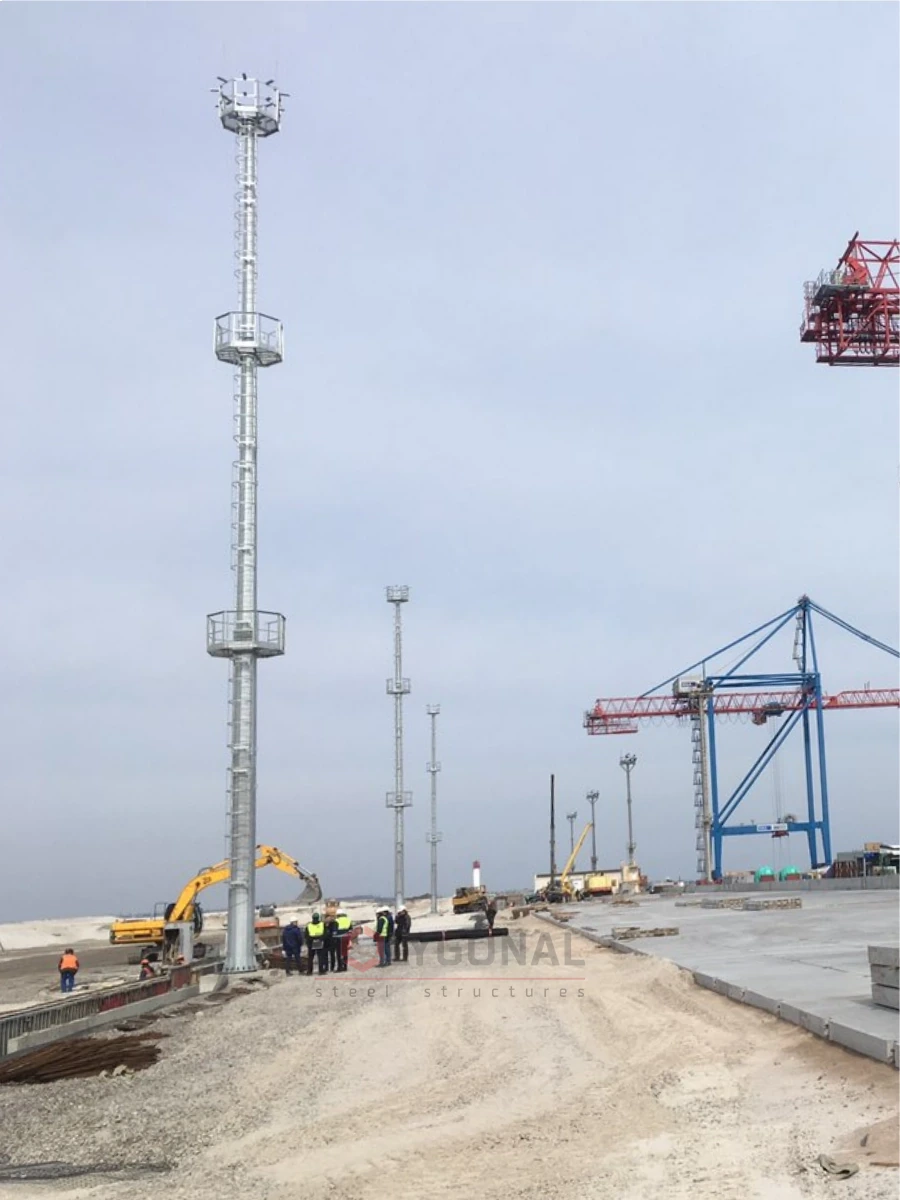

Industrial floodlight masts

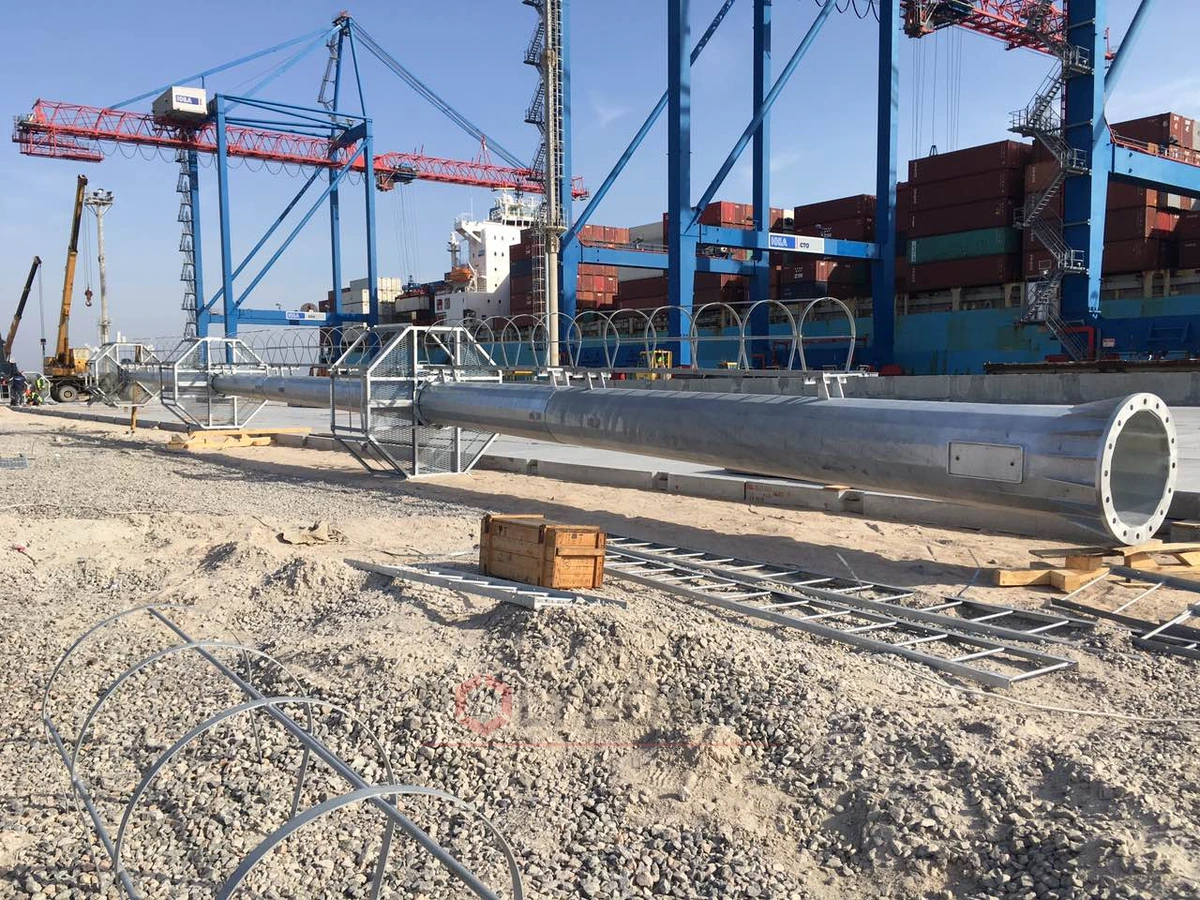

We design masts for ports, terminals and industrial sites for the required height and number of floodlights.
Head frame: fixed or lowering
The head frame is the attachment with platforms for the floodlights: a fixed one is attached to the top section, a lowering one is brought down by a winch so that the fixtures can be serviced at ground level without special equipment. More in the “Dimensions, foundation and installation” block below.
Airport masts

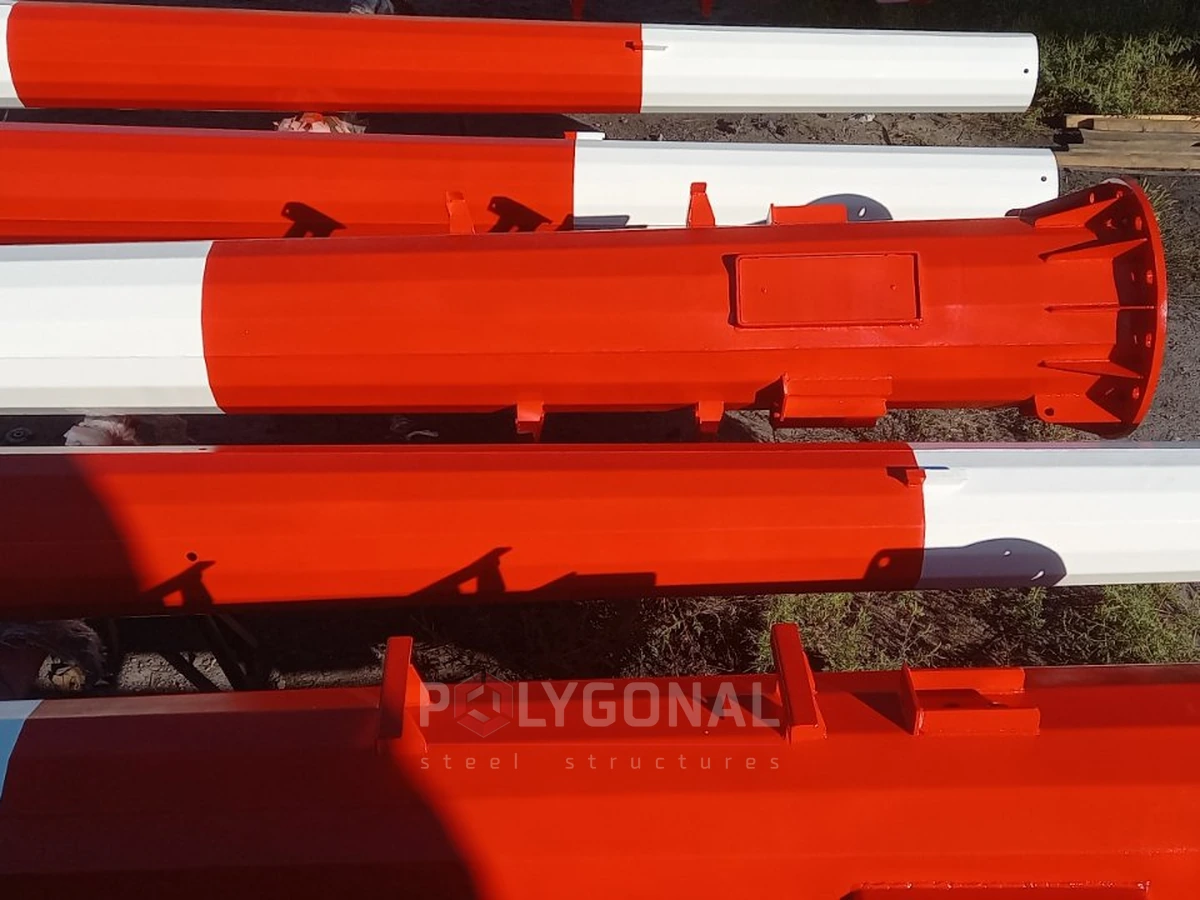

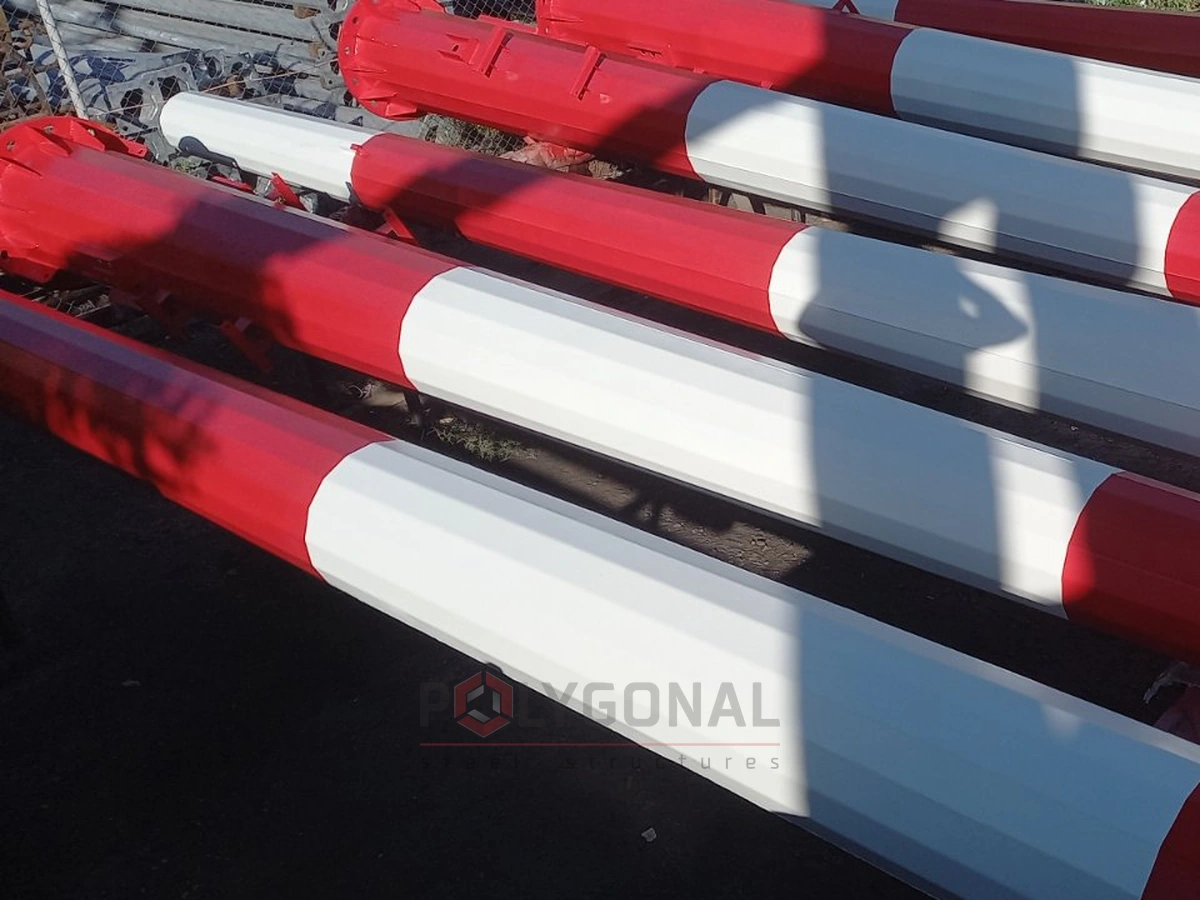

For airports we make masts with red-and-white signal painting of the sections.
Standard PMS and PMZH masts for substations
There are standard floodlight masts for substations: PMS (steel lattice) and PMZH (reinforced concrete), to design series 3.407.9-172. We make the PMS to the standard drawings, and for the PMZH we make the steel fittings (we do not supply reinforced concrete). In place of the standard masts, though, we offer multi-sided ones.
A multi-sided mast instead of the standard one
A multi-sided mast stands on one compact foundation, with no lattice or multi-legged base, and hot-dip galvanising protects it from corrosion. The direct multi-sided equivalents of PMS and PMZH are the PMS-B series (16.6–32.5 m to the floodlight platform). The marks are in the article Floodlight Masts PMS, PMZH and Our PMV, PMK: What’s the Difference.
PMZH fittings adapted to hot-dip galvanising
We make the PMZH fittings to the standard drawings. However, the drawings of the standard PMZH masts do not meet the requirements for products that can be hot-dip galvanised, so at the customer’s request we offer a better version, adapted to hot-dip galvanising.
If the customer wants to use a reinforced-concrete mast, we make its fittings (the floodlight platform, the ladder, the lightning rod and other steel parts) to the requirements of hot-dip galvanising. Design rules for such structures are in the article Designing Steel Structures for Hot-dip Galvanising: Holes, Welds, Stress.
High-mast lighting: technical specifications
Dimensions, foundation and installation
Tables of dimensions and scope of PM masts 12–20 m, anchor cages, installation stages, coating and documents are in PM Floodlight Masts 12–20 m: Dimensions, Anchor Cages and Scope of Application. A passport, an operating manual and accompanying documentation are issued for the masts.
What determines the price of a floodlight mast
We calculate the price individually for each site. It depends on:
- mast height and number of shaft sections;
- crown type: fixed or lowering with a lifting mechanism;
- number and weight of floodlights and equipment platforms;
- wind region and operating conditions;
- foundation (design and embedded parts);
- coating, aviation marking for airports, delivery and installation (its cost is calculated separately each time; installation is carried out by a licensed construction partner company).
How to order floodlight masts
- Send a plan of the site or pitch, the required height and number of masts (if already defined) or fill in the technical specification form.
- We agree the crown type, loads and foundation.
- We calculate the price and the lead time.
- We manufacture and ship the masts with a passport, operating instructions and accompanying documentation.
Multi-sided equivalents of PMS and PMZH: the PMS-B series
The PMS-B series consists of six multi-sided masts with a platform height of 16.6–32.5 m, designed for wind regions 1–4, up to 16 floodlights and a maximum equipment windage area of 3.2 m². The marks and overall heights are in the table of the article Floodlight Masts PMS, PMZH and Our PMV, PMK: What’s the Difference.
Articles about high-mast lighting
Floodlight Masts with a Mobile Crown (PMK)
On a mast with a mobile crown the floodlights are serviced from the ground: the crown with the equipment is lowered by a winch and raised again. Here is where such masts are used and what makes them convenient.
30 m Floodlight Mast: Design, Foundation, What Determines the Price
A 30 m floodlight mast, the PMV-30 size in our standard range, is what you specify when floodlights have to sit high above a large site: a stadium, a port, an industrial area.
Floodlight Masts PMS, PMZH and Our PMV, PMK: What’s the Difference
The marks PMS and PMZH come up in searches; older standard designs use them for floodlight masts. Here is what the letters stand for and how such masts differ from our multi-sided PMV and PMK masts.
PM Floodlight Masts 12–20 m: Dimensions, Anchor Cages and Scope of Application
Dimensions and scope of application of multi-sided PM floodlight masts, 12–20 m high, set out in tables, with notes on the head frame, foundation and installation.
Questionnaire: technical assignment form
Fill in the form and email it to us: we will prepare the KM-stage design documentation from it and calculate the price. The PDF is handy to print; the DOCX can be filled in on a computer.
Technical assignment form: floodlight mast (lighting pole)
A questionnaire for preparing KM-stage design documentation for a steel polygonal floodlight mast: crown type, floodlights, platforms, ladder.
Catalogue (PDF)
Download the technical documentation (in Ukrainian).
Catalogue: steel multi-sided floodlight poles
Unified design solution TP-PMV.21.01: general notes, drawings of masts PMV-20, PMV-24, PMV-30, PMV-34, questionnaire. 11 pages, in Ukrainian.
Floodlight masts: frequently asked questions
What height of floodlight mast should I choose?
The height is set by the lighting calculation, which takes into account the size of the site, the number and type of floodlights and the required illuminance. In our PMV range the heights are 20, 24, 30 and 34 m, and lower masts are made in the PM range of 12–20 m. For stadiums and sports grounds the height is derived from an angle of at least 25°: details are on the page Stadium Lighting.
What do I need to send for a price calculation?
The mast height, the number and model of floodlights, whether a lightning rod is needed and its height, whether there is a ladder and a guard, the city, the wind pressure region and the terrain type. Guide prices (incl. VAT, as of September 2026): PM masts of 12–20 m from UAH 40,000 each, multi-sided PMV masts from UAH 159,000 each; what the price depends on is covered in 30 m Floodlight Mast.
Do you make standard PMS and PMZH masts for substations?
We make PMS masts to the standard drawings. For the PMZH we make the steel fittings (floodlight platform, ladder, lightning rod and other steel parts) and do not supply the reinforced concrete. The drawings of the standard PMZH masts do not meet the requirements for products that can be hot-dip galvanised, so at the customer’s request we offer a better version, adapted to hot-dip galvanising: the fittings are made to the requirements of that coating. More often, though, we offer multi-sided masts in their place: they stand on one compact foundation. More in the article Floodlight Masts PMS, PMZH and Our PMV, PMK: What’s the Difference.
How much does a floodlight mast cost?
The price depends on height, crown type, number of floodlights, wind region, foundation and coating. Send the parameters or the technical specification form and we will calculate the price and lead time.
Where can I see completed masts?
Ports and industrial sites are on this page; stadiums and sports grounds (Kyiv, Zhytomyr, Vinnytsia, Ivano-Frankivsk, Dnipro) are on the page Stadium Lighting; all projects are on the page Completed Projects.
