PMO-3: multi-sided galvanised park lighting pole, 3 m
A multi-sided galvanised lighting pole 3 m high for parks, squares, courtyards and small sports fields.

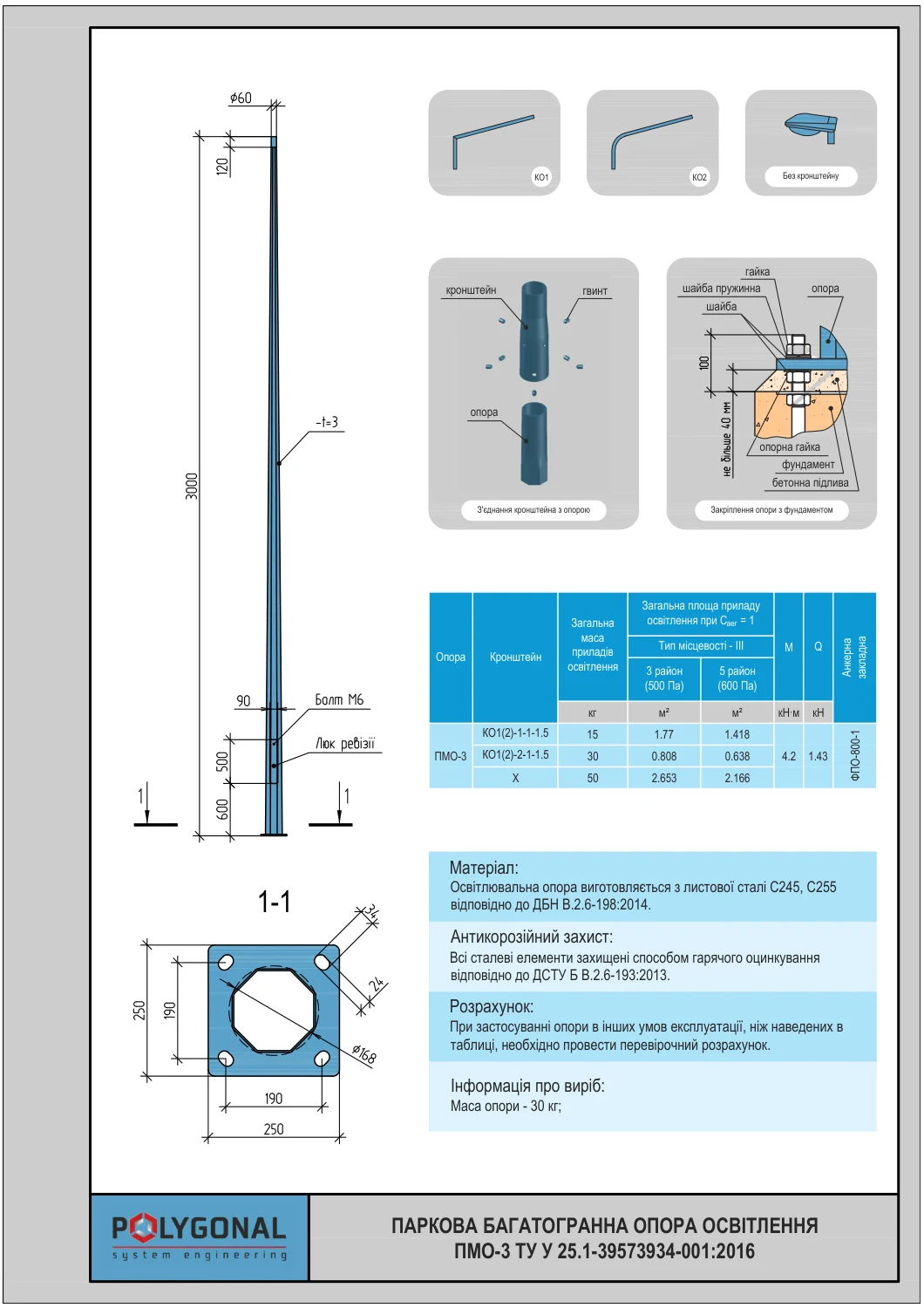

Drawing, dimensions, mass and the table of loads are in the product card (PDF).
Technical parameters of the PMO-3 pole
| Parameter | Value |
|---|---|
| Pole height, H | 3 m |
| Top diameter, ∅a | 60 mm |
| Bottom diameter, ∅b | 168 mm |
| Wall thickness | 3 mm |
| Base plate size | 250×250 mm |
| Centre distance between the base plate holes, B | 190×190 mm |
| Anchor bolts | 4 bolts M20 |
| Foundation anchor cage | FPO-800-1 |
| Hatch: height W × width v | 500 × 90 mm |
| Distance from the hatch to the pole base, Wp | 600 mm |
| Pole mass | 30 kg |
| Material | steel S245, S255 (DBN V.2.6-198:2014) |
| Corrosion protection | hot-dip galvanising to DSTU EN ISO 1461:2024 |
Price of the PMO-3
Price of PMO poles: from UAH 5,000 to 17,000 each including VAT (as of September 2026), a range for the whole height series. The PMO-3 price within it depends on height and fit-out; the exact price comes from a calculation — tell us the quantity and the delivery place.
The price includes the galvanised shaft and the inspection hatch. The FPO-800-1 anchor cage, brackets, crossarms, delivery and installation are priced separately.
Delivery terms for the PMO-3
| Term | Our terms |
|---|---|
| Availability | All ranges are in stock. Made to order: 3–4 weeks |
| Minimum order | From 1 pc; from 50 pcs, terms are agreed individually |
| Delivery and pickup | By carrier across Ukraine; pickup from the warehouse in Bila Tserkva |
| Payment | Cashless payment incl. VAT, 70% prepayment |
| Warranty | 2 years |
| Documents | Quality certificate |
Where PMO-3 is used
The PMO-3 lighting pole is meant for luminaires, floodlights and video surveillance equipment. We recommend PMO poles for trench cable supply: in parks, squares, villages and other sites.
The PMO-3 belongs to the main park range: parks, squares and courtyards mostly use 3–6 m poles. With one-sided spacing such a pole lights a strip up to 3 m wide (a path, a yard); with staggered two-sided spacing, about 4.5 m.
The hatch at the bottom of the pole is standard. On request we make the pole without a hatch, in a hinged version with a hinged anchor cage, and paint it any colour.

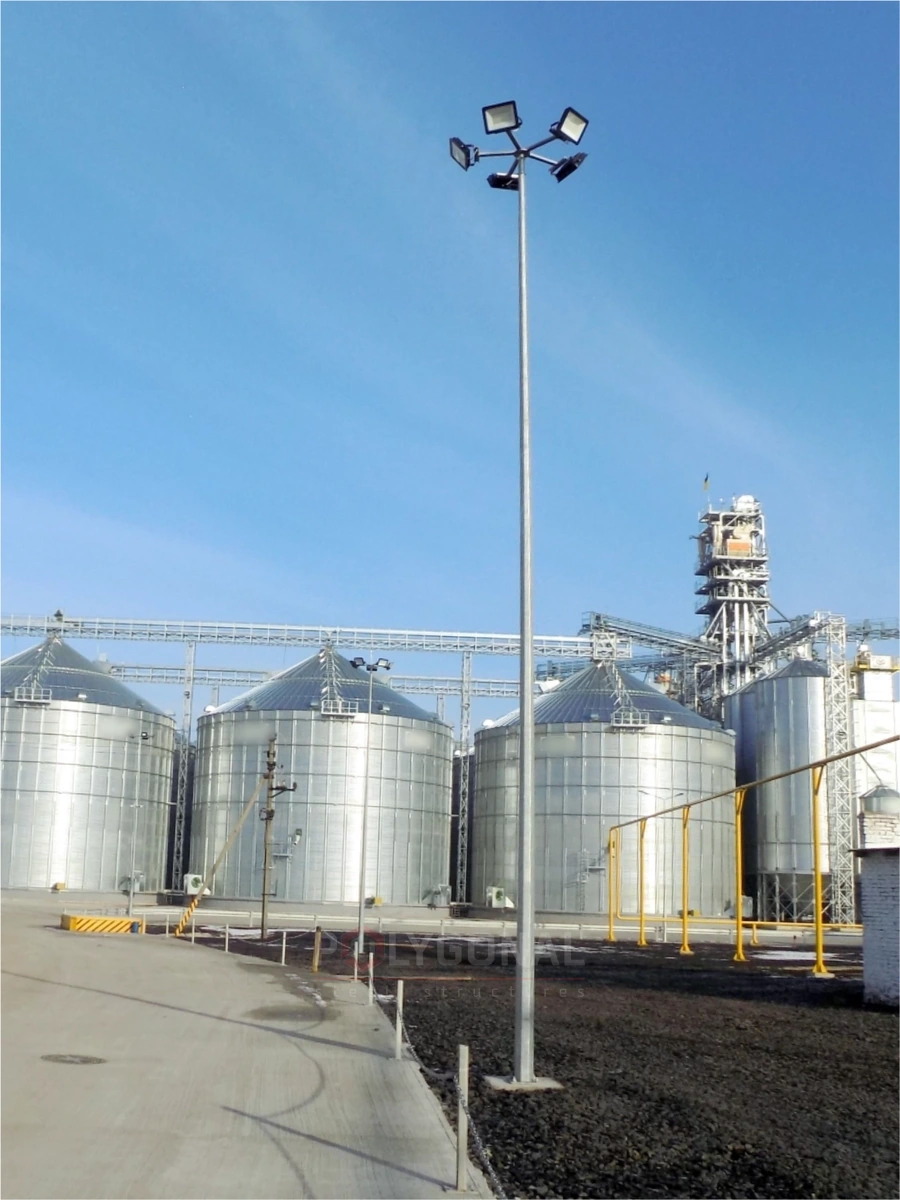

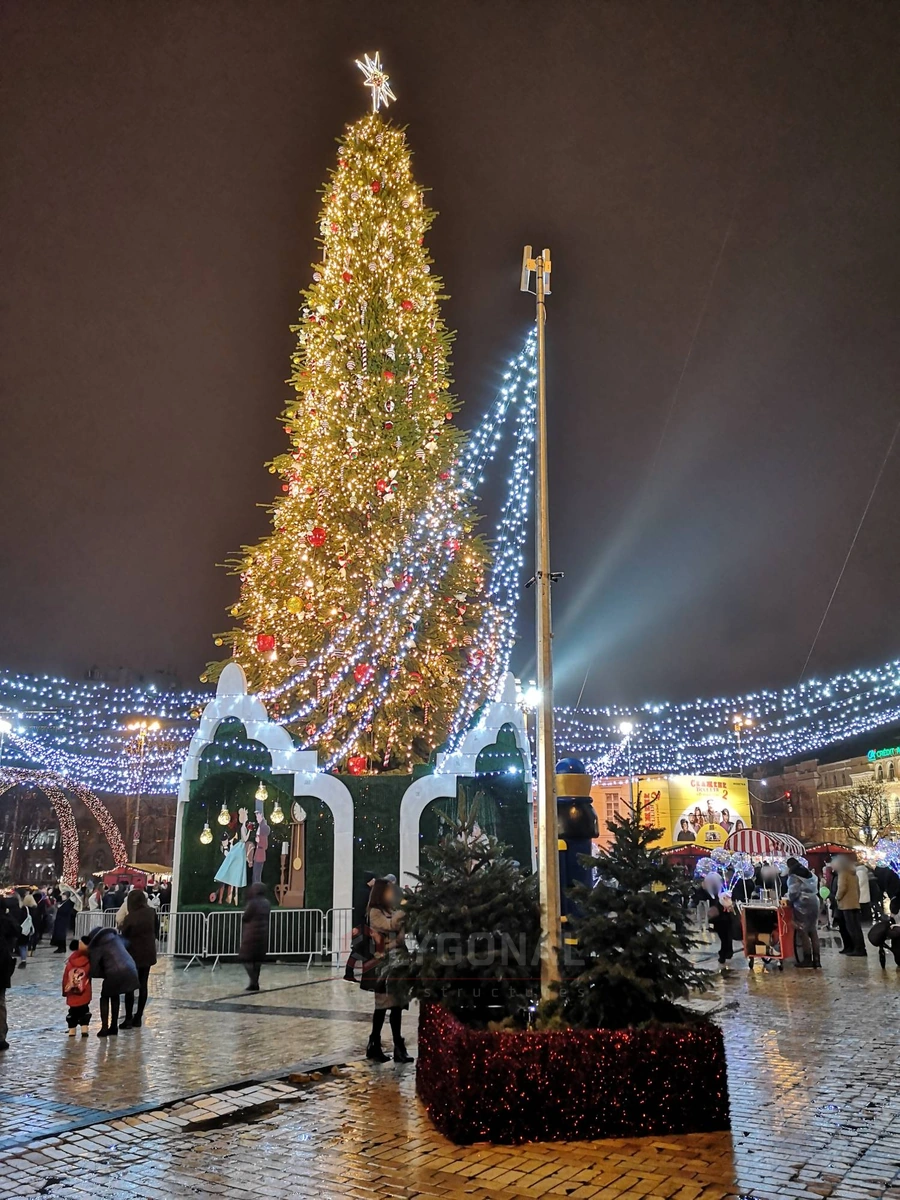

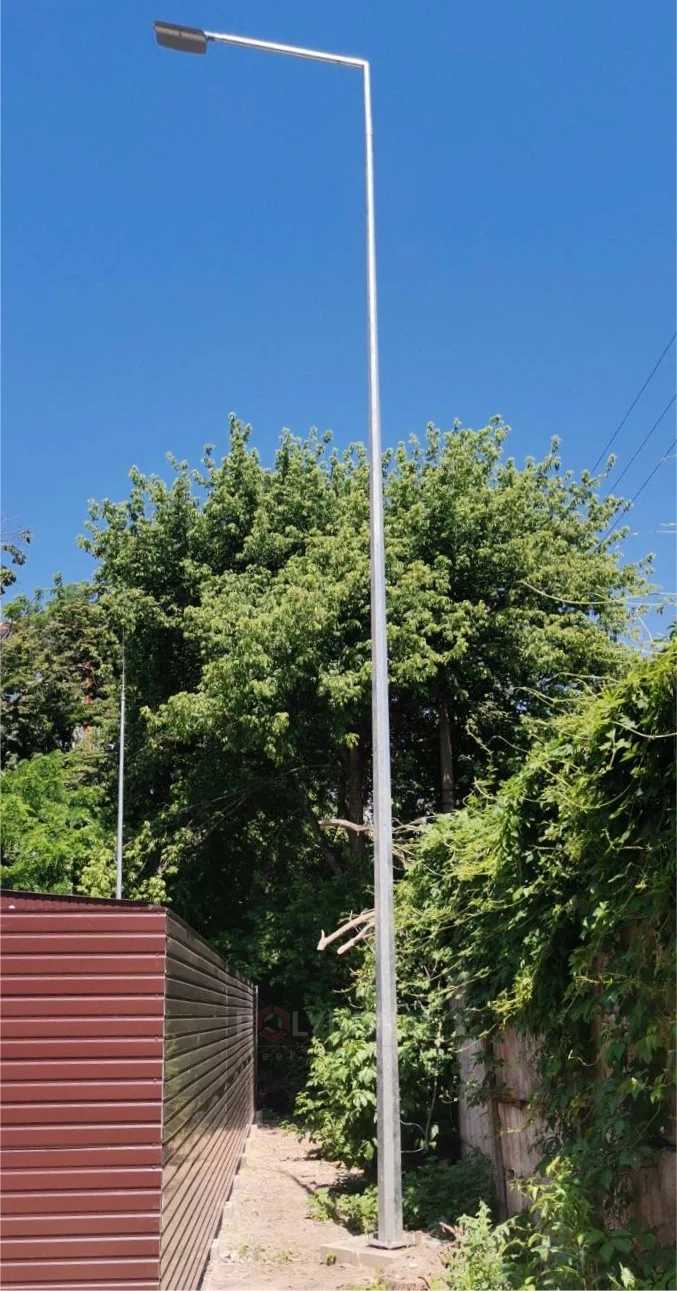

PMO poles on site
Permitted luminaire area on the PMO-3
Permitted total luminaire area on the PMO-3 (Caer = 1, terrain type III) at different wind pressures; Q and M are the shear force and bending moment at the pole base. Check your own luminaires in the pole selection calculator by area and mass.
| Hs, m | S, m | Equipment mass, kg | Q, kN | M, kN·m | 400 Pa, m² | 450 Pa, m² | 500 Pa, m² | 550 Pa, m² | 600 Pa, m² |
|---|---|---|---|---|---|---|---|---|---|
| – | – | 50 (on the axis) | 1,44 | 4,20 | 3,390 | 2,979 | 2,653 | 2,387 | 2,166 |
| 4 | 1,5 | 15 (on a 1-arm bracket) | 1,44 | 4,20 | 2,307 | 2,008 | 1,770 | 1,577 | 1,418 |
| 4 | 2х1,5 | 2х15 (on a 2-arm bracket) | 1,44 | 4,20 | 1,068 | 0,923 | 0,808 | 0,714 | 0,638 |
Installation and foundation of the PMO-3 pole
The PMO-3 pole stands on a foundation anchor cage: it is placed in the formwork and concreted with the foundation in advance, and the pole flange is bolted to the anchor bolts. More in Foundation anchor cages FPO, FPM, FKM and Lighting pole foundations.
Matching parts for the PMO-3
- Anchor cage: FPO-800-1 — 800 mm high, anchor bolts M20, 4 pcs.
- Brackets KO1 and KO2: KO1(2)-1-1-1.5 (one arm) and KO1(2)-2-1-1.5 (two arms) — the load table is calculated for them.
Material and corrosion protection
For steel 3 mm thick, ISO 1461 requires a mean zinc coating thickness of at least 55 µm (local at least 45 µm). How it is checked: Zinc coating thickness.
The PMO-3 pole in numbers
The pole mass is 30 kg, about 10 kg per metre of height. The diameter decreases from 168 mm at the bottom to 60 mm at the top, by about 36 mm per metre.
PMO-3: how many luminaires a 3 m pole can carry
On the PMO-3, wind load rarely limits the choice. At 400 Pa wind pressure, the top accepts 3.39 m² of luminaire side area. A 1-arm bracket takes 2.307 m² and a 2-arm bracket 1.068 m². At 500 Pa the limits are 2.653, 1.77 and 0.808 m². So mass is usually what limits you here: up to 50 kg on top and 15 kg per arm. Example: two park luminaires of 0.3 m² and 12 kg each on a 2-arm bracket total 0.6 m². That is within limits even at 500 Pa. Compared with the PLO-3 (2.186 m²) and PKO-3 (0.876 m²), the PMO-3 takes the most on top, thanks to its 168 mm base diameter. Indicative spacing is 9–12 m; the lighting calculation sets the final value.
