DMO-10: multi-sided galvanised road lighting pole, 10 m
A multi-sided galvanised road lighting pole 10 m high for roads and highways; also suitable as an intermediate pole for SIP cable.

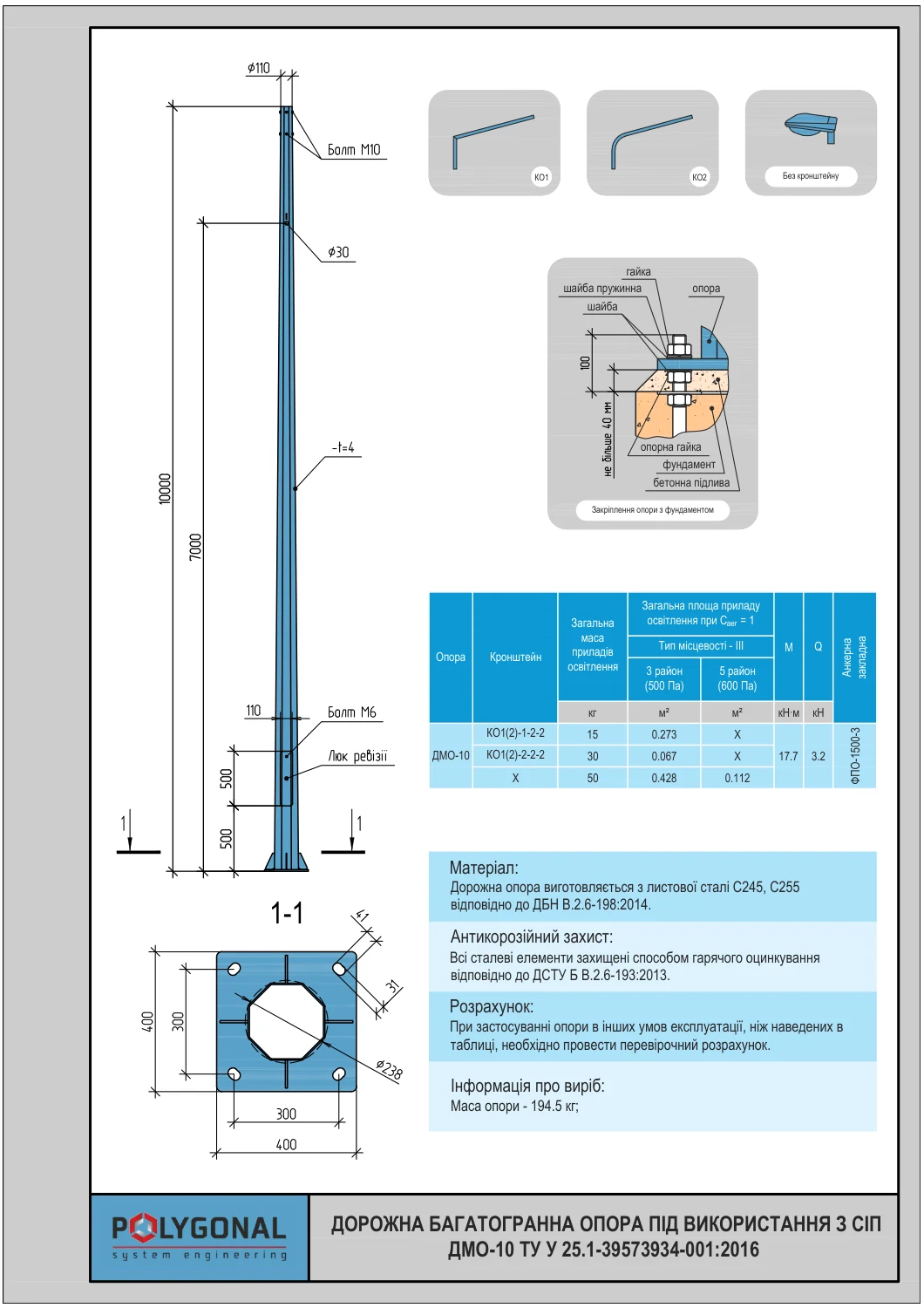

Drawing, dimensions, mass and the table of loads are in the product card (PDF).
Technical parameters of the DMO-10 pole
| Parameter | Value |
|---|---|
| Pole height, H | 10 m |
| Top diameter, ∅a | 110 mm |
| Bottom diameter, ∅b | 238 mm |
| Wall thickness | 4 mm |
| Base plate size | 400×400 mm |
| Centre distance between the base plate holes, B | 300×300 mm |
| Anchor bolts | 4 bolts M27 |
| Foundation anchor cage | FPO-1500-3 |
| Hatch: height W × width v | 500 × 120 mm |
| Distance from the hatch to the pole base, Wp | 500 mm |
| Pole mass | 194.5 kg |
| Material | steel S245, S255 (DBN V.2.6-198:2014) |
| Corrosion protection | hot-dip galvanising to DSTU EN ISO 1461:2024 |
Price of the DMO-10
Price of DMO poles: from UAH 25,000 to 39,000 each including VAT (as of September 2026), a range for the whole height series. The DMO-10 price within it depends on height and fit-out; the exact price comes from a calculation — tell us the quantity and the delivery place.
The price includes the galvanised shaft and the inspection hatch. The FPO-1500-3 anchor cage, brackets, crossarms, delivery and installation are priced separately.
Delivery terms for the DMO-10
| Term | Our terms |
|---|---|
| Availability | All ranges are in stock. Made to order: 3–4 weeks |
| Minimum order | From 1 pc; from 50 pcs, terms are agreed individually |
| Delivery and pickup | By carrier across Ukraine; pickup from the warehouse in Bila Tserkva |
| Payment | Cashless payment incl. VAT, 70% prepayment |
| Warranty | 2 years |
| Documents | Quality certificate |
Where DMO-10 is used
The DMO-10 lighting pole is meant for luminaires and floodlights on roads and highways. DMO poles also suit intermediate supports for SIP (self-supporting insulated cable).
Power reaches DMO poles by an overhead line, so one pole can carry both a luminaire and SIP cable. With staggered two-sided spacing the DMO-10 covers a strip of about 15 m.
The DMO pole comes with a 500 × 120 mm inspection hatch; we paint it any colour on request.
Permitted luminaire area on the DMO-10
Permitted total luminaire area on the DMO-10 (Caer = 1, terrain type III) at different wind pressures; Q and M are the shear force and bending moment at the pole base. Check your own luminaires in the pole selection calculator by area and mass.
| Hs, m | S, m | Equipment mass, kg | Q, kN | M, kN·m | 400 Pa, m² | 450 Pa, m² | 500 Pa, m² | 550 Pa, m² | 600 Pa, m² |
|---|---|---|---|---|---|---|---|---|---|
| – | – | 50 (on the axis) | 3,19 | 17,67 | 0,90 | 0,63 | 0,43 | 0,25 | 0,11 |
| 12 | 2,0 | 15 (on a 1-arm bracket) | 3,19 | 17,67 | 0,71 | 0,46 | 0,27 | 0,11 | – |
| 12 | 2х2,0 | 2х15 (on a 2-arm bracket) | 3,19 | 17,67 | 0,28 | 0,16 | 0,06 | – | – |
Installation and foundation of the DMO-10 pole
The DMO-10 pole stands on a foundation anchor cage: it is placed in the formwork and concreted with the foundation in advance, and the pole flange is bolted to the anchor bolts. More in Foundation anchor cages FPO, FPM, FKM and Lighting pole foundations.
Matching parts for the DMO-10
- Anchor cage: FPO-1500-3 — 1500 mm high, anchor bolts M27, 4 pcs.
- Brackets KO1 and KO2: KO1(2)-1-2-2 (one arm) and KO1(2)-2-2-2 (two arms) — the load table is calculated for them.
Material and corrosion protection
For steel 4 mm thick, ISO 1461 requires a mean zinc coating thickness of at least 70 µm (local at least 55 µm). How it is checked: Zinc coating thickness.
The DMO-10 pole in numbers
The pole mass is 194.5 kg, about 19.4 kg per metre of height. The diameter decreases from 238 mm at the bottom to 110 mm at the top, by about 13 mm per metre.
DMO-10: wind limits and a luminaire selection example
For DMO-10 the wind zone matters more than for lower poles. At 400 Pa the pole allows 0.9 m² on top, 0.71 m² on a single-arm bracket with 2 m outreach and 0.28 m² on a twin-arm one. At 500 Pa, as in Vinnytsia or Dnipro (W0 = 0.47 kPa), this drops to 0.43, 0.27 and 0.06 m².
A 0.25 m², 12 kg luminaire on one arm passes at 500 Pa with a small margin. At 550 Pa the arm limit is 0.11 m², so that luminaire moves to the lower DMO-9 (0.34 m²). At 600 Pa no bracket is permitted on DMO-10. A twin-arm option at 500 Pa is practically ruled out: 0.06 m² is not enough even for one luminaire. The pole stands on 4 M27 bolts and an FPO-1500-3 anchor cage, fed by aerial bundled cable. Spacing is roughly 30–40 m; a calculation on request confirms the layout.
